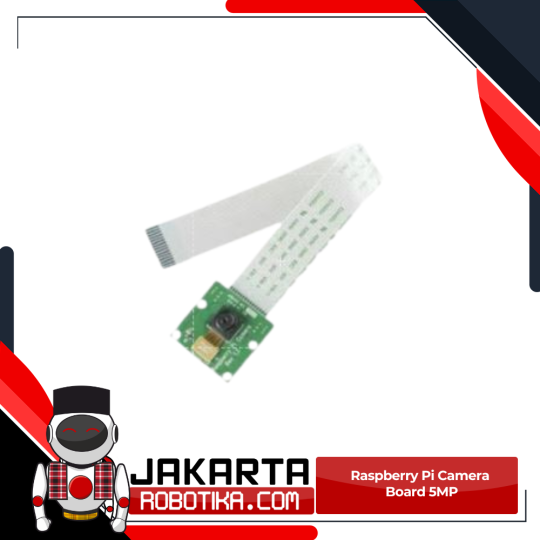

Raspberry Pi Camera Board 5MP

Rp. 63.000

Raspberry Pi Camera Board 5MP

  • Sisa Stok : 5


Share:

Raspberry Pi Camera Board 5MP

Raspberry PI 5MP Camera Board Module 500W Pixels

5 megapixel native resolution sensor-capable of 2592 x 1944 pixel static images
Supports 1080p30, 720p60 and 640x480p60/90 video
Camera is supported in the latest version of Raspbian, Raspberry Pi's preferred
operating system

ensor type: OmniVision OV5647 Color CMOS QSXGA (5-megapixel)

Sensor size: 3.67 x 2.74 mm (1/4" format)

Pixel Count: 2592 x 1944

Pixel Size: 1.4 x 1.4 um

Lens: f=3.6 mm, f/2.9

Angle of View: 54 x 41 degrees

Field of View: 2.0 x 1.33 m at 2 m

Full-frame SLR lens equivalent: 35 mm

Fixed Focus: 1 m to infinity

Video: 1080p at 30 fps with codec H.264 (AVC)

Up to 90 fps Video at VGA

Board size: 25 x 24 mm

Because the focal length of the lens is roughly the same as the width of the
sensor, it is easy to remember the field of view: at x meters away, you can see
about x meters horizontally, assuming 4x3 stills mode. Horizontal field of view
in 1080p video mode is 75% of that (75% H x 55% V sensor crop for 1:1 pixels at
1920x1080).
